Jaguar Sending Units, Fuse Boxes & Relays

Can't find the new or used part you need? Complete the Jaguar Parts Request Form:
$22.33
Part #: AEU1568

COVER FOR ENGINE COMPARTMENT GLASS FUSE BOX, 5 GLASS FUSE BOX, THIS IS THE COVER ONLY FOR FUSE BOX AAU5037. (AEU1568)

$49.95
Part #: AGU1068-OE

RELAY, FUEL PUMP, BLACK, FITS 1980-1987 XJ6 AND 1976-1996 XJS. Usually stamped 0332019151 or 0332014113. Originally had a silver case (AGU1068)

$39.95
Part #: AGU1070-OE

FUEL INJECTION RELAY, ORIGINAL CASE SILVER, FITS 1980-1993 V12 (STAMPED 0332014112). (AGU1070)

$94.95
Part #: C36611-OE

RELAY, FOR STARTER, OR DOOR LOCK, FITS 1974-1987 XJ6 AND 1976-1991 XJS. If you have an intermittent starting problem where sometimes you turn the key and nothing happens then this is the usual suspect. replaces C42381 SRB301 33356 33336. (C36611)

$129.95
Part #: C38616-X

HEADLAMP DIP RELAY, FITS 1974-1987 XJ6 XJ12 AND XJS UP TO 1991. Located on the inside left fender in the engine bay. It replaces the silver one with the blue printing on it. (C38616)

$150.00
Part #: C46179-USED

USED A/C AIR CONDITIONING FAN RELAY FITS 1980-1987 XJ6 AND 1976-1987 XJS Same as 33369 SRB303 C41189. (C46179)

$75.00
Part #: DAC10019-OE

INTERIOR LAMP DELAY TIMER, RED, LOCATED IN THE AUXILIARY FUSE BLOCK, FITS 1976-1993 XJS UP TO VIN 188104. Replaces DAC2760, Lucas 33384. NLA (DAC10019)

$50.00
Part #: DAC10019-USED

USED INTERIOR LAMP DELAY TIMER, RED, LOCATED IN THE AUXILIARY FUSE BLOCK, FITS 1976-1993 XJS UP TO VIN 188104. Lucas 33384 (DAC10019)

$89.95
Part #: DAC1028-X

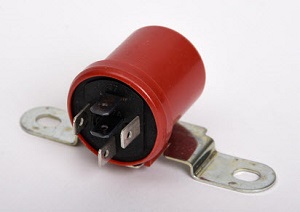

RED RELAY, FITS VARIOUS LOCATIONS AROUND THE CAR. SRB411 33374. (DAC1028)

$150.00
Part #: DAC10512-USED

USED DIMMER MODULE FOR DASH LIGHTS FITS 1994-1996 XJS VIN 184105 ON (DAC10512)

$95.00
Part #: DAC11079-USED

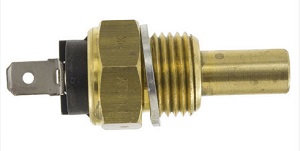

USED WATER TEMPERATURE SENSOR FOR GAUGE FITS 1992-1996 XJS 5.3, 6.0 AND 4.0 ENGINES. NLA (DAC11079)

$200.00
Part #: DAC11375-USED

USED SPEEDOMETER INTERFACE MODULE LOCATED IN THE TRUNK FITS 1992-1993 XJS FROM VIN 179737 TO 188104. NLA (DAC11375)

$250.00
Part #: DAC11399-USED

USED SPEEDOMETER INTERFACE MODULE LOCATED IN THE TRUNK FITS 1993-1996 XJS MODELS FROM VIN 188105 ON (DAC11399}

$95.00
Part #: DAC1329-USED

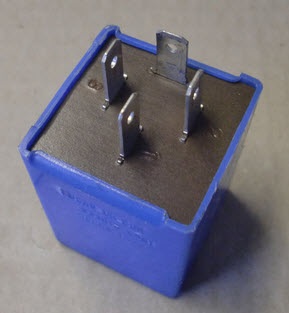

USED WIPER DELAY RELAY, BLUE LUCAS CASE 4 SPADE TERMINAL, LOCATED RIGHT SIDE UNDER DASH, FITS 1980-1987 XJ6, 1977-1989 XJS TO VIN 152510. 33381 (DAC1329)

$49.95
Part #: DAC1731-X

TURN SIGNAL FLASHER RELAY, FITS 1974-1987 XJ6 AND 1976-1991 XJS (FLASHER UNIT). Black 4 prong flasher relay (DAC1731)

$130.00
Part #: DAC1996-USED

USED PEKTRON DIODE PACK, BLUE. FITS VARIOUS LOCATIONS. IS ALSO THE WIPER RELAY FOR 1989-1990 XJS. NLA (DAC1996)

$22.91
Part #: DAC2583-OE

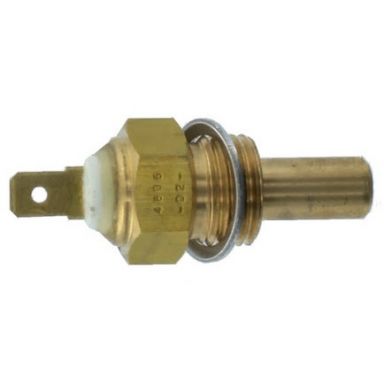

SENSOR, WATER TEMPERATURE GAUGE, FITS 1969-1997 XJ6 AND 1976-1991 XJS AND 1971-1974 V12 E-TYPE. Same as GTR110, C40106, C34812 (DAC2583)

Part #: DAC4506

ABS PUMP MOTOR RELAY, FITS 1989-1996 XJS WITH ANTILOCK BRAKES AND 1993-1994 XJ6. This is a yellow relay (DAC4506)


DAC4506 ABS PUMP MOTOR RELAY DAC4506
$60.00
Part #: DAC4506-USED

USED ABS PUMP MOTOR RELAY, FITS 1989-1996 XJS WITH ANTILOCK BRAKES AND 1993-1994 XJ6. This is a yellow relay (DAC4506)

$239.95
Part #: DAC4569-OE

SPEEDOMETER SENDING UNIT (TRANSDUCER), FITS 1984-1988 XJS FROM VIN 113536 TO VIN 144262 AND 1985-1992 SERIES III XJ12. Internal diameter of nut is 22mm If your speedometer works intermittently then this is the part that likely needs to be replaced. Replaces DAC2875 (DAC4569)

1 2
