Jaguar Temperature Sensors

USED Thermal Switch For Hot Start System, See Illustration #16, FITS 1992-1996 XJS With V12 5.3 or 6.0 From VIN 179737 On. Screw in male threads on one end and 2 male electrical connectors on other end. This flushes cool fuel through the fuel rail during a hot start It prevents hard starting due to vapor lock. NLA (DAC10335)

No Longer Available - Thermal Switch, FITS V12 XJS 1976-1987 (Screws Into Left Fuel Rail). This flushes cool fuel through the fuel rail during a hot start. It prevents hard starting due to vapor lock. (DAC3474)

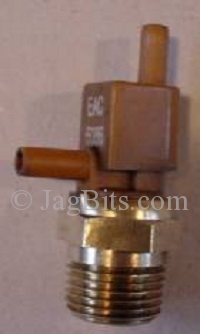

New Thermal Vacuum Valve Located On Left Fuel Rail. See #13 In Second Illustration. FITS 1988-1991 5.3 V12 XJS and 1985-1987 XJ6 This part will not be brown like the original it is the newer updated version and works perfectly. This valve flushes cool fuel through the fuel rail during a hot start. It prevents hard starting due to vapor lock. NLA EBC4600 (EAC5086)

USED Fuel Temperature Sensor In Right Fuel Rail, FITS 1988-1991 XJS from Eng # 8S 71436. Screws in and has 2 male spade connectors on it. (EBC3184)

USED Vacuum Thermal Valve, FITS All XJS and XJ12 With The 5.3 Liter V12 Engine. Replaces EAC4083 (EBC4599)

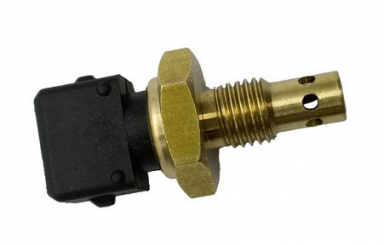

Air Temperature Sensor In Air Flow Meter Elbow. See #7 In Second Illustration. FITS 1995-1997 XJ6 4.0 XJ12 6.0 & 1992-1996 XJS 4.0. (LHE1602AA)

Sensor, Coolant Temperature, For The Fuel Injection. FITS 1980-1994 XJ6 and 1980-1994 XJS Left Thermostat Housing (SNB802) (DBC3728) (EAC1386) (EAC3927) (SNB802)

USED Thermal Switch, FITS V12 XJS 1976-1987 (Screws Into Left Fuel Rail). (DAC3474)

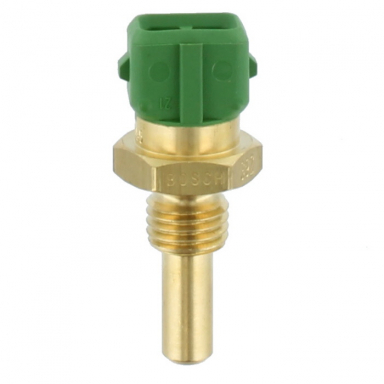

Temperature Sensor Coolant, Right Thermostat Housing FITS 1984-1992 5.3 V12 XJS (DAC4737)
