Jaguar Fuel Hoses and Pipes

FUEL RAIL CROSSOVER LINE FITS 1998 XJ8 TO VIN 853936, 1997-1998 XK8 TO VIN 031302. NLA NCA3027AE (NCA3027AF)

STUFFER PIN FITTING, FOR FUEL TANK LINES. SEE #7 IN SECOND ILLUSTRATION. FITS 1998-2003 XJ8, 1997-2003 XK8 XKR, 1995-1997 XJ6 XJ12, 1995-1996 4.0 AND 6.0 XJS FROM VIN 194775 ON. THIS IS THE CLIP/FITTING WITH METAL TABS & QTY 2 O-RINGS, THAT HOLD THE FUEL FEED & FUEL RETURN PIPES TO THE FUEL TANK. (EBC9606)

FUEL PIPE CONNECTS FUEL RAILS ON SUPERCHARGED ENGINE FITS 2000-2002 XKR, 1998-2003 XJR NLA (NCC3027AB)

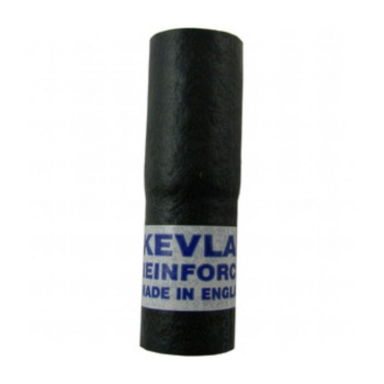

STEPPED HOSE FUEL LINE TO TANK FITS 1998-2003 XJ8 (NND6070AB)

USED FUEL FEED HOSE PIPE, TANK TO FUEL FILTER. ALWAYS REPLACE THE FUEL PIPE STUFFER PIN FITTING EBC9606, AT FUEL TANK END. FITS 1998-2003 XJ8 XJR AND 1995-1997 XJ6 XJ12. NNA6082AE (NNA6082AH)

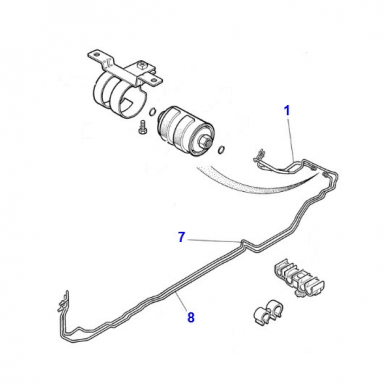

USED FUEL PIPE/LINE SET (3PCS) ENGINE TO TANK. SEE #1 #7 & #8 IN ILLUSTRATION. ALWAYS REPLACE THE FUEL PIPE STUFFER PIN FITTINGS EBC9606, AT FUEL TANK END. FITS 1998-2003 XJ8 XJR SHORT WHEELBASE (SWB). THESE PIPES ARE VERY LONG, SO IN ORDER TO SHIP, WE WILL CAREFULLY COIL THEM, YOU MUST STRAIGHTEN TO INSTALL. TO FIT OVERSIZE BOX, THUS SHIPPING IS ADDTIONAL NND6103AD NNA6082AH NLA (NND6102AC)

USED FUEL RAIL CROSSOVER LINE. SEE #1 IN ILLUSTRATION. FITS 1998 XJ8 TO VIN 853936, 1997-1998 XK8 TO VIN 031302. NCA3027AE (NCA3027AF)

USED FUEL FEED PIPE. SEE #2 IN ILLUSTRATION. FITS 2006-2009 XJ8 4.2 NATURALLY ASPIRATED FROM VIN H00321 ON. C2C30731 (C2C39408)

FUEL FEED LINE ENGINE COMPARTMENT FITS 4.2 SUPERCHARGED 2006 XJ8 FROM VIN G49701 TO H00320. NLA 6W939J280BC (C2C22061)

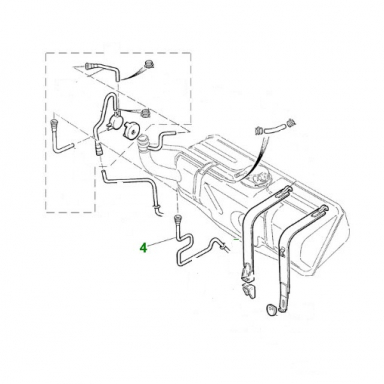

USED FUEL PIPE, AT FUEL TANK. SEE #4 IN ILLUSTRATION. FITS 2001 XJ8 XJR (NNC6050AC)

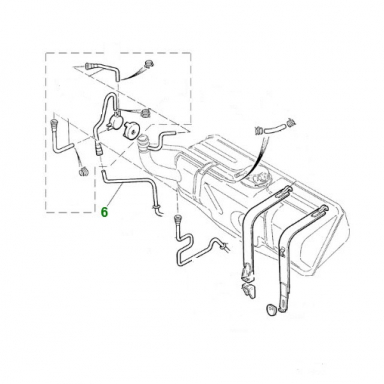

USED FUEL PIPE, AT FUEL TANK. SEE #6 IN ILLUSTRATION. FITS 2001 XJ8 XJR (NND6067AG)
