Jaguar Differential Rebuild Parts

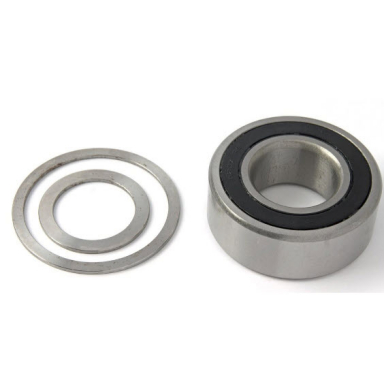

OUTPUT SHAFT BEARING, SINGLE BEARING DOUBLE ROW, FOR DIFFERENTIAL OUTPUT SHAFT, INCLUDES BEARING & SIDE SHIMS, FITS 1968-1976 XJ6 AND 1971-1974 XKE V12, WITH 5 BOLT/6 HOLE FLANGE. (12261)

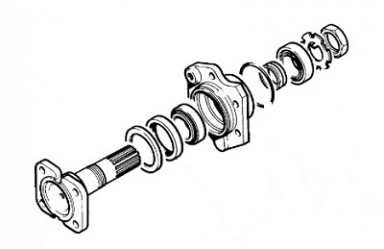

DIFFERENTIAL OUTPUT STUB AXLE SHAFT BEARING & SEAL KIT. DOES ONE SIDE, FITS 1979-1987 XJ6 AND 1976-1996 XJS Each differential req's two kits. Kit includes oil seal, 2 bearings, o-ring, crush sleeve, locktab washer. JLM11699 (DIF300)

DIFFERENTIAL REBUILD KIT. PICTURE FOR REFERENCE ONLY. FITS 1976-1997 XJ6 AND 1976-1993 XJS MODELS Includes the stub axle bearings and seals, carrier bearings as well as the pinion bearings, crush sleeve and seal, and all of the seals, collars etc to rebuild your differential. Please be sure to include your car year and model on the checkout form when purchasing, so we know which kit to ship you. CALL FOR CURRENT PRICING FOR 1994-1996 XJS 4.0 6.0. DOES NOT FIT THE DANA DIFFERENTIALS.

DIFFERENTIAL PINION INPUT SHAFT BEARING AND SEAL KIT, FITS 1975-1997 XJ6 AND 1976-1996 XJS NON DANA DIFFERENTIALS. Includes outer bearing, inner bearing, spacer and seal. (PIN300)

COLLAPSIBLE SPACER FOR DIFFERENTIAL PINION BEARINGS FITS 1972-1997 XJ6 AND 1976-1996 XJS NON DANA DIFFERENTIALS (12456)

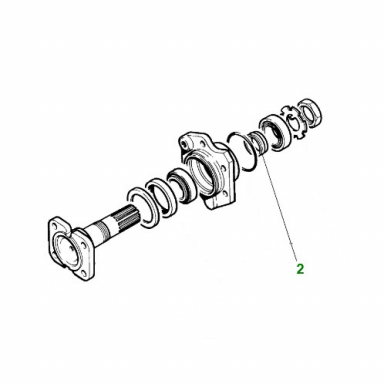

CRUSH SLEEVE FOR DIFFERENTIAL STUB AXLE BEARINGS. SEE #2 IN ILLUSTRATION. FITS 1979-1987 XJ6 AND 1976-1996 XJS (RTC1348)

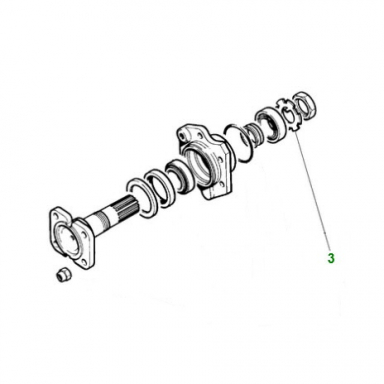

LOCK TAB WASHER FOR DIFFERENTIAL STUB AXLE NUT. SEE #3 IN ILLUSTRATION. FITS 1979-1987 XJ6 AND 1976-1996 XJS WITH DRAIN PLUG AT BOTTOM OF DIFF CASE (JLM556)

PINION BEARING INNER FITS 1975-1997 XJ6 AND 1976-1996 XJS NON DANA DIFFERENTIALS (12252)
