Jaguar Control Arms, Shafts & Bushings

Can't find the new or used part you need? Complete the Jaguar Parts Request Form and we'll email you the price and availability ASAP!

BEARING & SEAL KIT, REAR HUB CARRIER LOWER PIVOT
$115.25
Part #: C16029-SET

BEARING & SEAL KIT, REAR HUB CARRIER LOWER PIVOT FITS 1969-1987 XJ6 and all XJS up to 1994 WITH INBOARD BRAKES. This kit has the bearings and seals for the outer wishbone. Each kit includes 4 C16029 bearings and 4 C20178 felt seals which is enough to do both sides of the car. The inner wishbone bearing and seal kit is part number C17167/SET. Kit includes rubber seals. One kit does both sides of the car.

CONTROL ARM SPACER, REAR SUSPENSION
$38.58
Part #: C16628

CONTROL ARM SPACER, REAR SUSPENSION FITS 1976-1993 XJS & 1969-1987 XJ6.

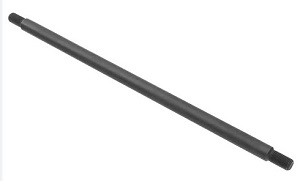

INNER FULCRUM SHAFT, REAR WISHBONE
$74.18
Part #: C17008

INNER FULCRUM SHAFT, REAR WISHBONE, FITS 1980-1987 XJ6 AND ALL XJS.

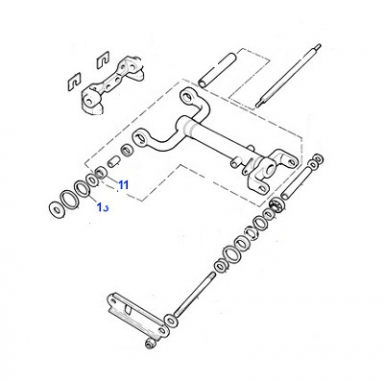

BEARING & SEAL KIT, REAR CONTROL ARM PIVOT AT THE IRS UNIT.
$105.86
Part #: C17167-SET

BEARING & SEAL KIT, REAR CONTROL ARM PIVOT AT THE IRS UNIT. FITS 1969-1987 XJ6 and all XJS models. Does both sides of the car. This kit has the bearings and seals for the inner wishbone. Each kit includes 8 C17067 bearings and 8 C17213 rubber seals - enough to do both sides of the car. The outer wishbone bearing and seal kit is part number C16029/SET.

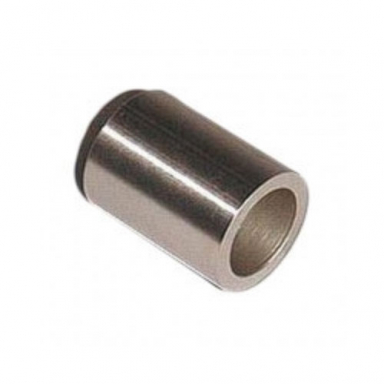

TUBE BETWEEN BEARINGS INNER REAR WISHBONE
$17.88
Part #: C171681-OE

TUBE BETWEEN BEARINGS INNER REAR WISHBONE FITS 1969-1987 XJ6 1976-1993 XJS

RUBBER SEAL, FOR THE BEARINGS ON THE INNER SWING ARM PIVOT.
$6.27
Part #: C17213-OE

RUBBER SEAL, FOR THE BEARINGS ON THE INNER SWING ARM PIVOT. FITS 1980-1987 XJ6 AND 1976-1992 XJS. These seal the grease in the bearings, and can be found at the lower IRS pivot next to the differential. Each car takes eight.

SEAL  RETAINING RING, SWING ARM PIVOT AT THE DIFFERENTIAL.
$14.61
Part #: C17936

SEAL RETAINING RING, SWING ARM PIVOT AT THE DIFFERENTIAL. Each car takes eight.

SEAL RETAINING RING, SWING ARM PIVOT AT THE DIFFERENTIAL.
$9.70
Part #: C17936-X

SEAL RETAINING RING, SWING ARM PIVOT AT THE DIFFERENTIAL. Each car takes eight.

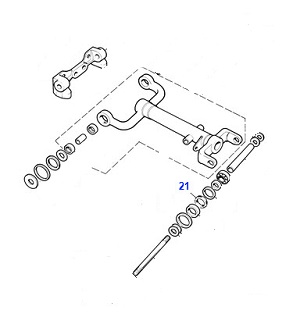

SEAL, FELT
$2.89
Part #: C20178-OE

SEAL, FELT, FITS 1980-1987 XJ6, AND ALL XJS.

OIL SEAL SHELL FOR C20178 FELT SEAL
$13.95
Part #: C20179-X

OIL SEAL SHELL FOR C20178 FELT SEAL FITS 1980-1987 XJ6, AND ALL XJS

USED FULCRUM SHAFT FOR UPPER WISHBONE CONTROL ARM
$85.00
Part #: C27859-USED

USED FULCRUM SHAFT FOR UPPER WISHBONE CONTROL ARM FITS 1969-1987 XJ6 XJ12 and 1976-1996 XJS

CONTROL ARM BUSHING SET FRONT LOWER
$37.00
Part #: C8673-SET

BUSHING SET, FOR FRONT LOWER CONTROL ARM. FITS 1969-1987 XJ6 AND ALL XJS AND XKE. One set includes 4 bushings which does both sides of the car.

BEARING TAPERED, BOTTOM OF REAR HUB CARRIER.
$29.95
Part #: CAC4610

BEARING TAPERED, BOTTOM OF REAR HUB CARRIER. FITS XJS 1993-1996, XJ6 1988-1997 AND XJ8 1998-2003.. 2 REQUIRED PER WHEEL, 4 PER CAR, SOLD INDIVIDUALLY.

CONTROL ARM BUSHING FRONT UPPER
$25.95
Part #: CAC9295-OE

BUSHING, FOR FRONT UPPER CONTROL ARM, FITS XJ6 FROM 1969-1989 AND ALL XJS AND V12 XKE. This is one bushing each car uses 4 so you will need to purchase 4 per car.

PIVOT PIN REAR LOWER WISHBONE OUTER
$39.95
Part #: CBC9118-X

PIVOT PIN OUTER REAR LOWER CONTROL ARM TO HUB CARRIER FITS 1969-1987 XJ6, 1976-1996 XJS

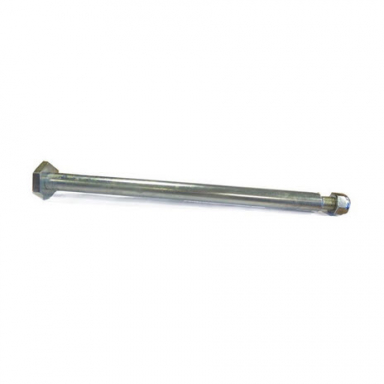

FULCRUM SHAFT ASSEMBLY, LOWER WISHBONE, FRONT SUSPENSION.
$74.95
Part #: JLM11859-OE

FULCRUM SHAFT ASSEMBLY, LOWER WISHBONE, FRONT SUSPENSION FITS 1979-1987 XJ6 AND ALL XJS MODELS

BOLT FOR OUTER END OF REAR WISHBONE
Part #: JZB100039

BOLT FOR OUTER END OF REAR WISHBONE, FITS 1994-1996 XJS. Replaces JZB100025


JZB100039 BOLT FOR OUTER END OF REAR WISHBONE
USED CONTROL ARM REAR SUSPENSION DRIVER LEFT SIDE
$190.00
Part #: MHC2953AA-USED

USED CONTROL ARM REAR SUSPENSION DRIVER LEFT SIDE FITS 1993-1996 XJS FROM VIN 188105 ON

LOCKING NUT FITS VARIOUS PLACES
$3.95
Part #: NY114041J

LOCKING NUT FITS VARIOUS PLACES ON 1994-1997 XJ6, 1994-1996 XJS, 1998-2003 XJ8, 1997-2006 XK8. Replaces JNV114041
