Jaguar Gaskets

Can't find the new or used part you need? Complete the Jaguar Parts Request Form and we'll email you the price and availability ASAP!

REAR MAIN ENGINE OIL SEAL
$23.23
Part #: C19654-OE

REAR MAIN ENGINE SEAL, SET OF TWO, FITS ALL 4.2 LITER XJ6 MODELS, and 5.3 V12 up to ENG# 8S66782.

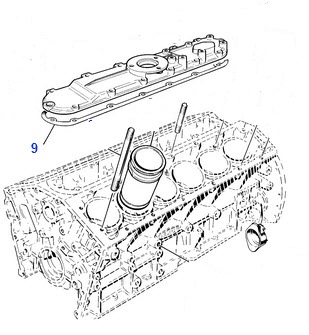

TOP COVER (VALLEY) GASKET
$10.95
Part #: C29485-OE

TOP COVER (VALLEY) GASKET, V12 ENGINE.

GASKET SET, V12 WATER MANIFOLDS. DOES BOTH SIDES.
$29.95
Part #: C30344-SET

GASKET SET, V12 WATER MANIFOLDS. DOES BOTH SIDES. FITS 5.3 LITER XJS. Includes 8 gaskets enough to remove and replace the two water rails along the side of the engine. SAME AS EBC9634

COPPER WASHER
$0.89
Part #: C4146-OE

COPPER WASHER FITS XJS RADIATOR BLEED AND OIL FEED LINES AT REAR OF XJ6 AND XJS HEAD.

HEAD GASKET SET
$249.95
Part #: CH832-OE

CYLINDER HEAD GASKET SET FITS 1976-1980 XJS AND XJ12 FUEL INJECTED ENGINES replaced JLM9532

OIL SEAL ENGINE AUXILIARY SHAFT
$34.95
Part #: EAC6156-OE

OIL SEAL ENGINE AUXILIARY SHAFT FITS 1992-1996 4.0 XJS

FRONT CRANKSHAFT OIL SEAL, TIMING COVER SEAL
$58.48
Part #: EAC7954-OE

FRONT CRANKSHAFT SEAL, TIMING COVER SEAL, FITS 1988-1997 XJ6 AND ALL 4.0 XJS MODELS.

O-RING
$4.68
Part #: EAC8102

O-RING FITS 1982-1987 XJS V12

GASKET OIL DELIVERY PIPE FOR OIL PUMP
$7.48
Part #: EAC9762

GASKET OIL DELIVERY PIPE FOR OIL PUMP FITS 1992-1996 6.0 XJS

GASKET OIL SUCTION PIPE FOR OIL PUMP
$9.95
Part #: EAC9763

GASKET OIL SUCTION PIPE FOR OIL PUMP FITS ALL V12 XJS. Replaces C31063

GASKET ON THE ENDS OF THE INTAKE MANIFOLD, TRIANGLE SHAPED
$3.39
Part #: EAC9819

GASKET ON THE ENDS OF THE INTAKE MANIFOLD, TRIANGLE SHAPED, FITS 1976-1992 XJS.

REAR CRANKSHAFT OIL SEAL, LIP TYPE
$98.53
Part #: EBC2101-OE

REAR CRANKSHAFT OIL SEAL, LIP TYPE, FITS 5.3 LITER V12 XJS FROM ENGINE NUMBER 8S66783 ON. Will not fit engines with the old-style rope seal. NLA

OIL FILTER HOUSING GASKET BETWEEN HOUSING AND BLOCK
$12.75
Part #: EBC9624

GASKET BETWEEN OIL FILTER HOUSING AND BLOCK, FITS ALL 5.3 LITER V12 ENGINES (SAME AS EAC6337).

GASKET TIMING COVER TOP
$15.95
Part #: EBC9625

GASKET TIMING COVER TOP FITS 1988-1992 5.3 XJS

GASKET ENGINE VALLEY COVER
$9.95
Part #: EBC9631

GASKET ENGINE VALLEY COVER FITS 1988-1996 V12 XJS

GASKET TIMING COVER RIGHT SIDE
$4.88
Part #: EBC9632

GASKET TIMING COVER RIGHT SIDE FITS 1988-1992 5.3 XJS

GASKET TIMING COVER LEFT SIDE
$4.88
Part #: EBC9633

GASKET TIMING COVER LEFT SIDE FITS 1988-1992 5.3 XJS. Replaces EBC3281

SANDWICH PLATE GASKET (LARGER GASKET JUST ABOVE THE OIL PAN GASKET)
$59.33
Part #: EBC9637

GASKET, SANDWICH PLATE (LARGER GASKET JUST ABOVE THE OIL PAN GASKET) FITS V12 ENGINES.

FRONT CRANKSHAFT OIL SEAL KIT
$145.48
Part #: JLM10613

OIL SEAL KIT, FRONT CRANKSHAFT OIL SEAL AND DISTANCE PIECE, FITS 1980-1997 V12 ENGINES. Replaces C30002 C32197

HEAD GASKET SET
$410.80
Part #: JLM11088

HEAD GASKET SET, FITS 1988-1993 XJ6 AND 4.0 LITER XJS up to engine number 179548. Includes head gasket and all other engine gaskets above the head gasket. You need to replace the head bolts when you reinstall the head. The head bolt set is part number EBC1771SET. These are special torque-to-release bolts that need to be replaced once they are used.

HEAD GASKET SET
$249.95
Part #: JLM11088-X

HEAD GASKET SET, FITS 1988-1993 XJ6 AND 4.0 LITER XJS up to engine number 179548. Includes head gasket and all other engine gaskets above the head gasket. You need to replace the head bolts when you reinstall the head. The head bolt set is part number EBC1771SET. These are special torque-to-release bolts that need to be replaced once they are used.

HEAD GASKET SET
$401.44
Part #: JLM11383-OE

HEAD GASKET SET, FITS 1993-1994 XJ6 from engine number 179542 on, AND 4.0 LITER XJS from engine number 179549 on. Includes all gaskets necessary to install the head. You need to replace the head bolts when you reinstall the head. The head bolt set is part number EBC1771SET. These are special bolts that need to be replaced once used.

GASKET SET, LOWER ENGINE
$109.62
Part #: JLM11517

GASKET SET, LOWER ENGINE, FITS 5.3 AND 6.0 LITER V12 XJS AND XJ12. Includes all engine block gaskets and seals below the head gaskets. Replaces JLM9529

LOWER ENGINE GASKET SET
$437.75
Part #: JLM11574

LOWER ENGINE GASKET SET FITS 1988-1997 XJ6, AND 4.0 LITER XJS. Includes all gaskets below (but not including) the head gasket.

HEAD GASKET SET
$615.00
Part #: JLM11649

HEAD GASKET SET, FITS 1995-1997 XJ6 AND 1995-1996 XJS 4.0 MODELS AFTER ENGINE # B107675. Includes the head gaskets and all other engine gaskets above the head gasket.

HEAD GASKET SET
$264.00
Part #: JLM11649-X

HEAD GASKET SET, FITS 1995-1997 XJ6 AND 1995-1996 XJS 4.0 MODELS AFTER ENGINE # B107675. Includes the head gaskets and all other engine gaskets above the head gasket.

HEAD GASKET SET
$234.75
Part #: JLM12229-OE

HEAD GASKET SET, 1980-1992 V12 XJ12, XJS AND 1993-1997 XJ12. One kit does both heads, and includes the head gaskets and all other engine gaskets above the head gasket.(DE880)

FILTER HOUSING GASKET TO BLOCK
$18.40
Part #: NBB1715AA

FILTER HOUSING GASKET TO BLOCK FITS 1992-1996 4.0 XJS

FILTER HOUSING GASKET
$12.95
Part #: NBB1716AA

FILTER HOUSING GASKET FITS 1995-1997 XJ6 XJR AND ALL 4.0 XJS
